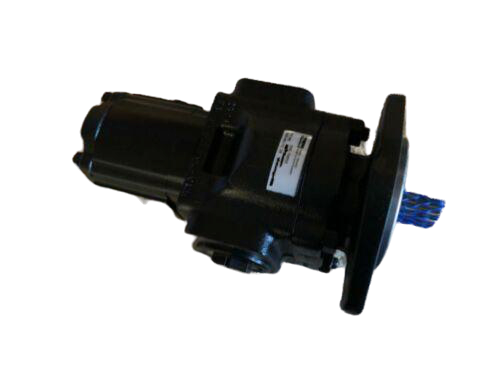

332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 16 CC/REV 332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 16 CC/REV

£1,068.00
£649.00
Availability: Out Of Stock
Parker Hannifin
Tags/ / /

Key Information

  • Rotation: Clockwise (looking from shaft end)
  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Front Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Front pump 1 1/16" UNF threaded outlet
  • Rear pump 7/8" UNF threaded outlet

Replaces the following JCB part numbers

  • 332/T4833

Machine Fitment

  • TOW HITCH HYDRAULIC CIRCUIT 527-55 TIER 3 9812/7560
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 524-50 TIER 3 9812/7560
  • PUMP,GEAR 527-55 TIER 3 9812/7560
  • PUMP,GEAR 524-50 TIER 3 9812/7560
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 527-55 4WS 9822/0425
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 524-50 4WS 9822/0425


Key Information

  • Rotation: Clockwise (looking from shaft end)
  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Front Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Front pump 1 1/16" UNF threaded outlet
  • Rear pump 7/8" UNF threaded outlet

Replaces the following JCB part numbers

  • 332/T4833

Machine Fitment

  • TOW HITCH HYDRAULIC CIRCUIT 527-55 TIER 3 9812/7560
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 524-50 TIER 3 9812/7560
  • PUMP,GEAR 527-55 TIER 3 9812/7560
  • PUMP,GEAR 524-50 TIER 3 9812/7560
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 527-55 4WS 9822/0425
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 524-50 4WS 9822/0425
