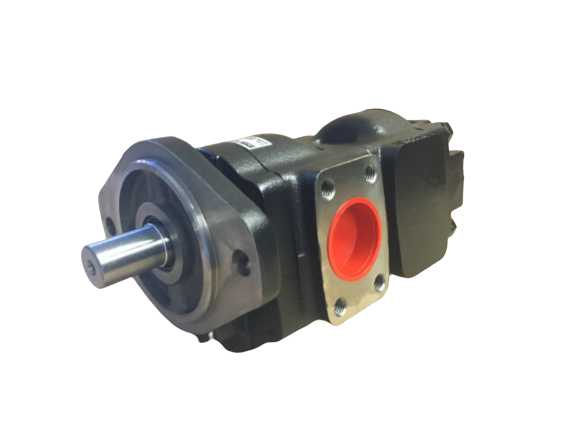

20/903200 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV 20/903200 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

~~£1,275.00~~

£639.00

Availability: 20 In Stock

Vendor: Parker Hannifin

/ 3CX/ 3CX CONTRACTOR/ 3CX444 SUPER/ 3CX444S/ 3CXSM444 SUPER/ 3CXSM444S PC/ 4C/ 4C SUPER/ 4CN/ 4CN PC/ 4CN-2/ 4CN-4/ 4CN444/ 4CN444S/ 4CS PC/ 4CX444 PC/ 4CX444 SUPER/ 4CX444S/ 4CXSM444/ 4CXSM444 SUPER/ 4CXSM444S PC/ JCB

Description Description
Shipping & Delivery Shipping & Delivery

Key Information

Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 220 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

20/911200 - 7441 - 4071 - 20/903200

Machine Fitment

PUMP, MAIN HYDRAULIC CODE 4071 4CX444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CXSM444 Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN444 SUPER Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4C PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 3CX444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 3CXSM444S PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 3CX444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4C444 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 3CX CONTRACTOR Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 3CXSM444 SUPER Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4C Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 4CN-2 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 4CS PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CX444 Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN444 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 4CN PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CXSM444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN-4 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 4CN444S PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 4C SUPER Centremount AR AK Engine 9802/9760

Key Information

Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 220 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

20/911200 - 7441 - 4071 - 20/903200

Machine Fitment

PUMP, MAIN HYDRAULIC CODE 4071 4CX444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CXSM444 Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN444 SUPER Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4C PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 3CX444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 3CXSM444S PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 3CX444S PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4C444 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CX444 PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 3CX CONTRACTOR Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 3CXSM444 SUPER Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 SUPER Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4071 4C Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4071 4CN-2 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 4CS PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CX444 Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN444 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 4CN PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CXSM444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4071 4CN-4 Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4071 4CN444S PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4071 4C SUPER Centremount AR AK Engine 9802/9760

We dispatch all of our items on the same day they are purchased, providing the purchase is made before 1pm and the item is in stock. We send our products worldwide via a wide range of couriers to provide you, the customer, with the best price and service.
