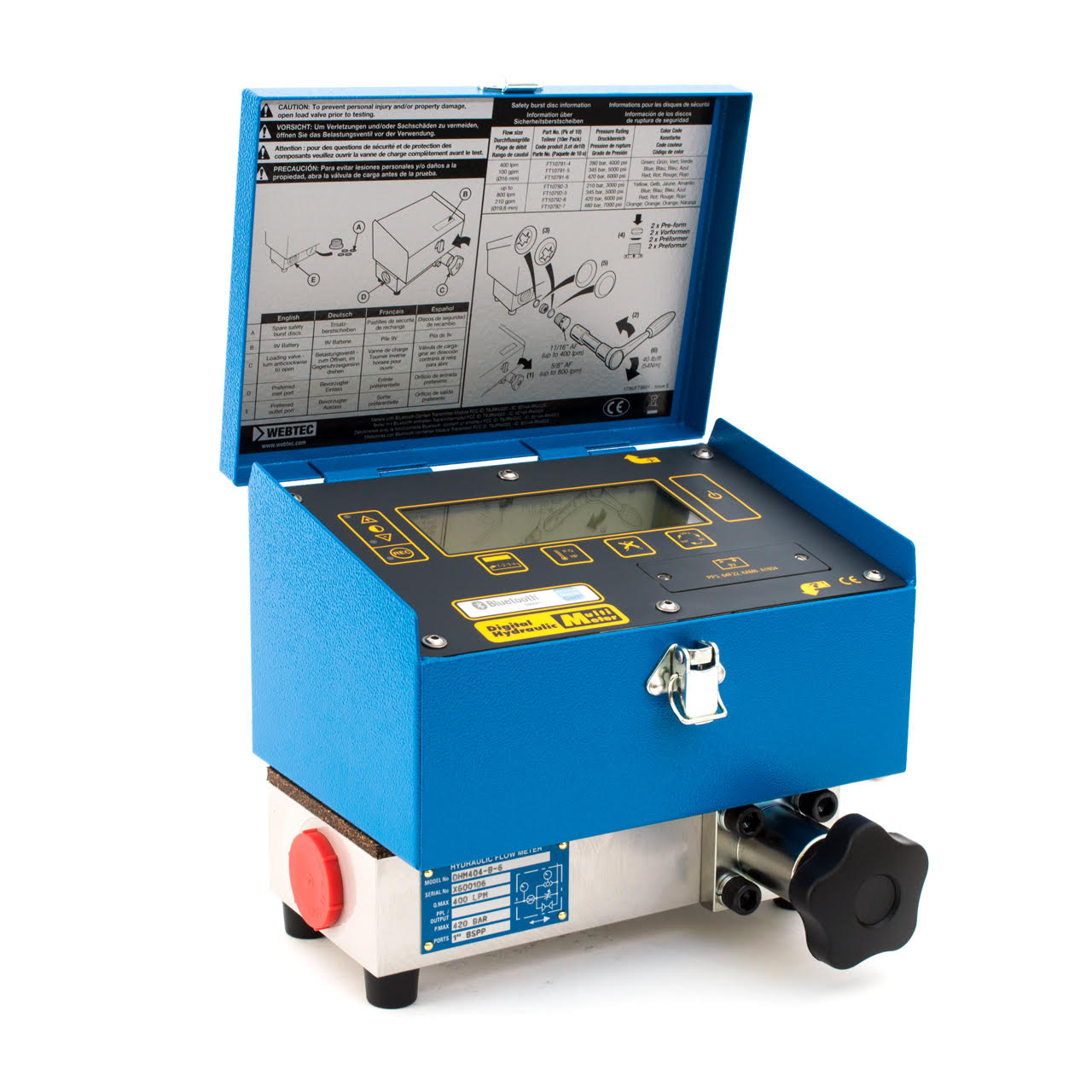

Webtec DHM404-B-6 Digital Hydraulic Multimeter Unit 1" BSP Ports

DESCRIPTION

The new DHM series measures flow, pressure, peak pressure, temperature, power and volumetric efficiency. Features QuickCert™ data record, wireless transfer and certificate creation.

• Produce an electronic report for immediate email to the customer
• Flow: 100 US gpm (400 lpm)
• Pressure: 6000 psi (420 bar)
• Accurate measurements and FAST response bar graphs to aid diagnosis.
• Automatic calculation of hydraulic power and volumetric efficiency.
• Record data to robust, non-volatile memory.

Interpass™ internal oil by-pass protects the hydraulic tester against over pressure.

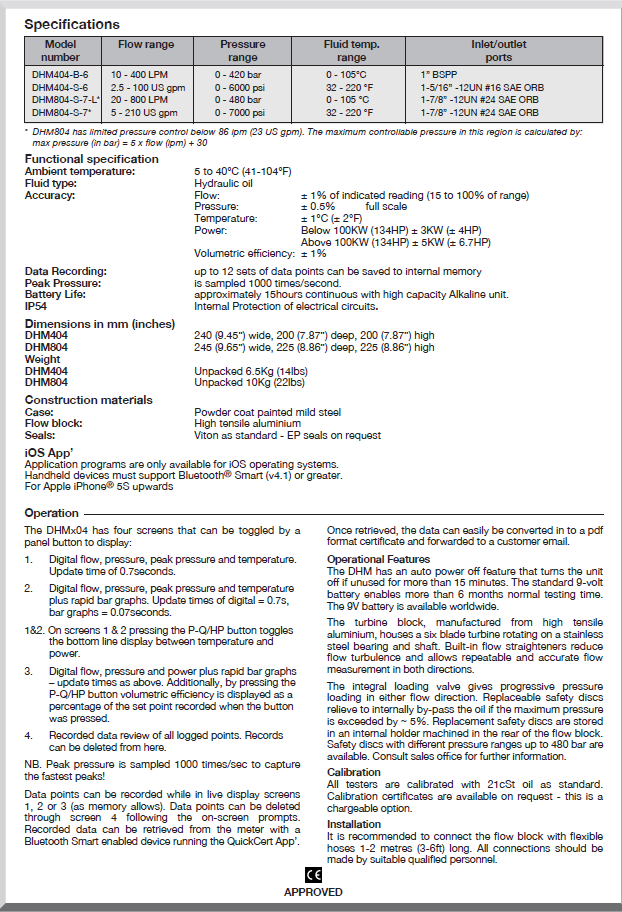

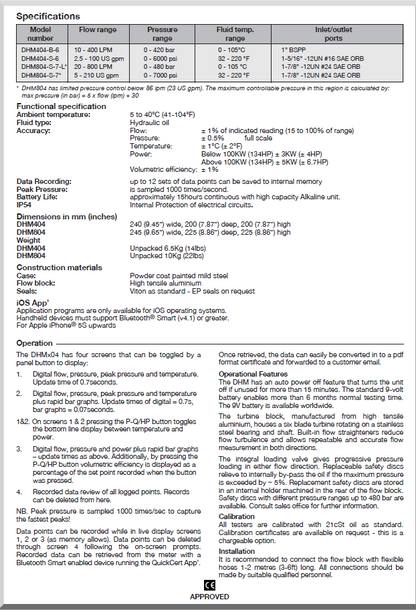

Technical Data
