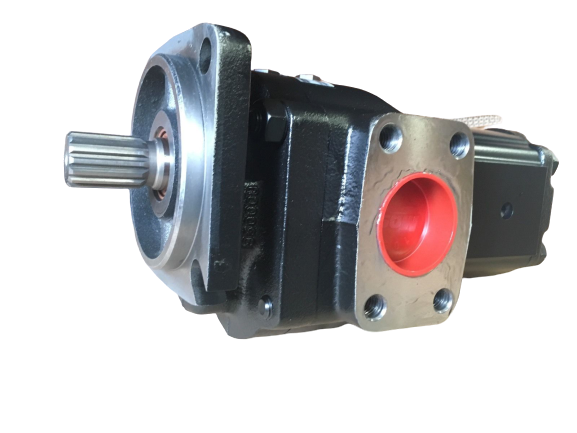

Key Information
- Rotation: Counter-Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE spline 16/32 Pitch
- SAE B 4 hole mounting flange
- Front pump displacement: 36 cc/rev (33L/Min per 1000 rpm)
- Rear pump displacement: 16 cc/rev (29L/Min per 1000 rpm)
- Combined 2” SAE flange inlet
- Maximum working pressure on front pump: 250 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 325 Nm
- Comes complete with LS priority valve
Replaces the following JCB part numbers
- 20/925357- 20/925592 - 7029
Machine Fitment
- PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 DUTCH MILITARY 9812/7025
- PUMP (TWO STAGE) MAIN HYDRAULICS 540S XL 9802/7020
- PUMP (TWO STAGE) MAIN HYDRAULICS 530 SUPER 9802/7020
- PUMP (TWO STAGE) MAIN HYDRAULICS 540 FS PLUS 9802/7020
- PUMP (TWO STAGE) MAIN HYDRAULICS 540 SUPER 9802/7020
- PUMP (TWO STAGE) MAIN HYDRAULICS 540 SWAY 9802/7040
- PUMP (TWO STAGE) MAIN HYDRAULICS 530 9802/7040
- PUMP (TWO STAGE) MAIN HYDRAULICS 530S XL 9802/7020
- PUMP (TWO STAGE) MAIN HYDRAULICS 540 9802/7040
- PUMP (TWO STAGE) MAIN HYDRAULICS 530 SWAY 9802/7040
- PUMP (TWO STAGE) MAIN HYDRAULICS 530 FS PLUS 9802/7020
- PUMP (TWO STAGE) MAIN HYDRAULICS 530S XL 9802/7960
- PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 SWAY 9802/7880
- PUMP (TWO STAGE) MAIN HYDRAULICS 530 FS PLUS 9802/7960
- PUMP (TWO STAGE) MAIN HYDRAULICS 533-105 9802/7880
- PUMP (TWO STAGE) MAIN HYDRAULICS 9802/7880
- PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 SWAY 9802/7060
- PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 FS PLUS 9802/7060
- PUMP (TWO STAGE) MAIN HYDRAULICS 530 SUPER AG 9802/7960
- PUMP (TWO STAGE) MAIN HYDRAULICS 533-105 9802/7060
- PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 FS 9802/7060
- PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 9802/7060
- PUMP (TWO STAGE) MAIN HYDRAULIC 530 LE 9802/7850
- PUMP (TWO STAGE) MAIN HYDRAULIC 530 LE SWAY 9802/7850
