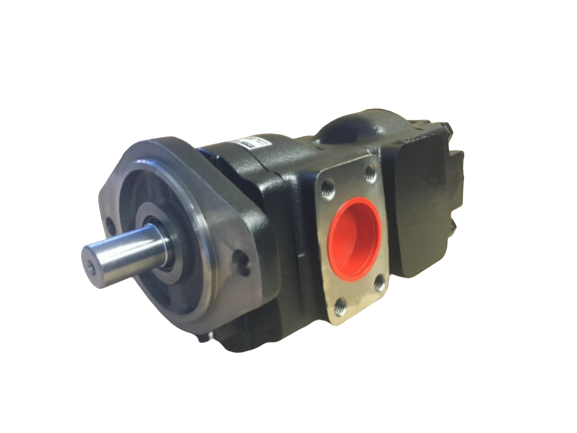

Key Information
- Rotation: Counter-Clockwise (looking from shaft end)
- 1” Diameter parallel keyed shaft
- SAE B 2 hole mounting flange
- Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
- Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 220 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 325 Nm
Replaces the following JCB part numbers
- 20/911200 - 7441 - 4071 - 20/903200
Weight
Machine Fitment
- PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine 9802/9750
- PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine 9802/9760
- PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine 9802/9720
- PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine 9802/9770
- PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
- PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750
- PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
- PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
- PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 3CX 9802/9700
- PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 7441 3CX4M Military 9802/9759
- PUMP, MAIN HYDRAULIC CODE 7441 3CXC PC Sideshift Servo AR/AK Engine 9802/9770
- PUMP, MAIN HYDRAULIC CODE 7441 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
- PUMP, MAIN HYDRAULIC CODE 7441 3CX Sideshift AR AK Engine 9802/9750
- PUMP, MAIN HYDRAULIC CODE 7441 3CX (CM) Centremount AA AB Engine 9802/9720
- PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 7441 3CXSM-4T PC Centremount Servo AR/AK Engine 9802/9780
- PUMP, MAIN HYDRAULIC CODE 7441 3CXSM-4T Centremount AR AK Engine 9802/9760
- PUMP, MAIN HYDRAULIC CODE 7441 3CXSM Sideshift AR AK Engine 9802/9750
- PUMP, MAIN HYDRAULIC CODE 7441 4CXM Military 9802/9739
- PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 7441 4CX444 PC Sideshift Servo AR/AK Engine 9802/9770
- PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 4CXSM444 Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 7441 3CX444 SUPER Sideshift AR AK Engine 9802/9750
