David Brown

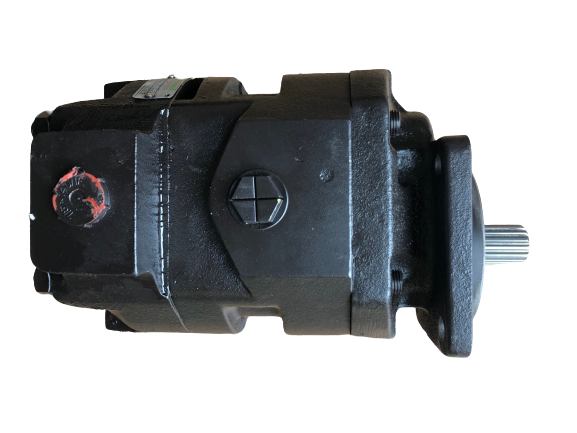

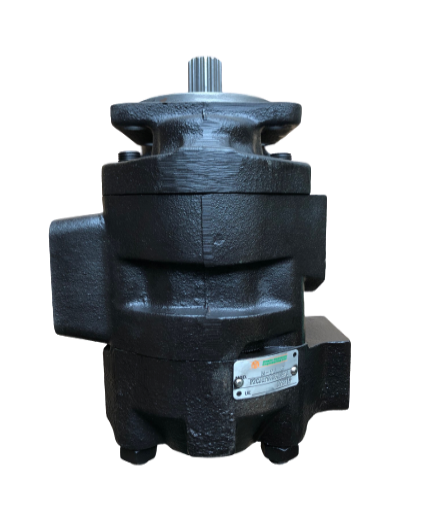

919/71800 JCB Twin Hydraulic Pump

919/71800 JCB Twin Hydraulic Pump

Low stock: 4 left

£649.00 GBP
£1,409.44 GBP £649.00 GBP
Sale Sold out

PRICE EXCL. VAT

  • Super Fast Worldwide Shipping Via Trusted Couriers
  • Make Significant Savings Against OEM Parts
  • Contact Our Expert Sales Team For Product Advice
  • Bulk Purchase Discount Available On All Products. Contact Our Sales Team To Discuss Your Requirements.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 15T 1” Diameter splined shaft
  • SAE B 4 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)

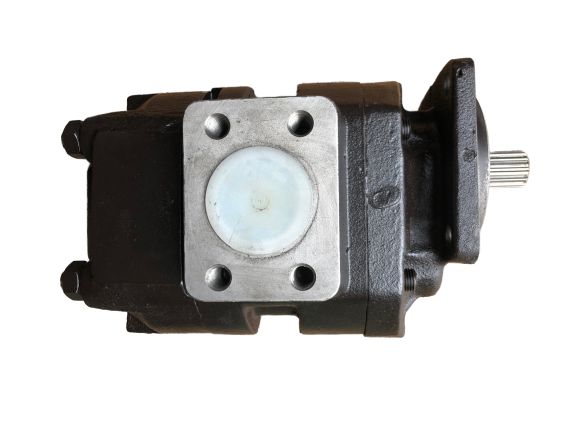

  • Combined 2” SAE flange inlet
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • - 919/71800 - P2CPJ190706C189 - 20/903300 ( is 15mm shorter than Parker pump)

Weight

  • 32KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 SP 30 Servo Command 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 SP 35 Servo Command 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CXSM444 MS 35 Manual shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 MS 30 Manual shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CN444 MS 35 Manual shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CN444 SP 30 Servo Command 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CXSM444 PS 30 Power shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 PS 30 Power shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CN444 PS 35 Sideshift AWS 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 MS 20 Manual shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CXSM444 MS 20 Manual shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CN444 SP 35 Servo Command 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CXSM444 PS 35 Power shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444SM SP 20 Servo Command 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CN444 PS 30 Sideshift AWS 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 PS 35 Power shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CXSM444 MS 30 Manual shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 PS 20 Power shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444SM SP 35 Servo Command 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444SM SP 30 Servo Command 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CN444 MS 30 Manual shift 30KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CXSM444 PS 20 Power shift 20KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 MS 35 Manual shift 35KPH 9802/9500
  • PUMP, MAIN HYDRAULIC M400001 M411710 4CX444 SP 20 Servo Command 20KPH 9802/9500
