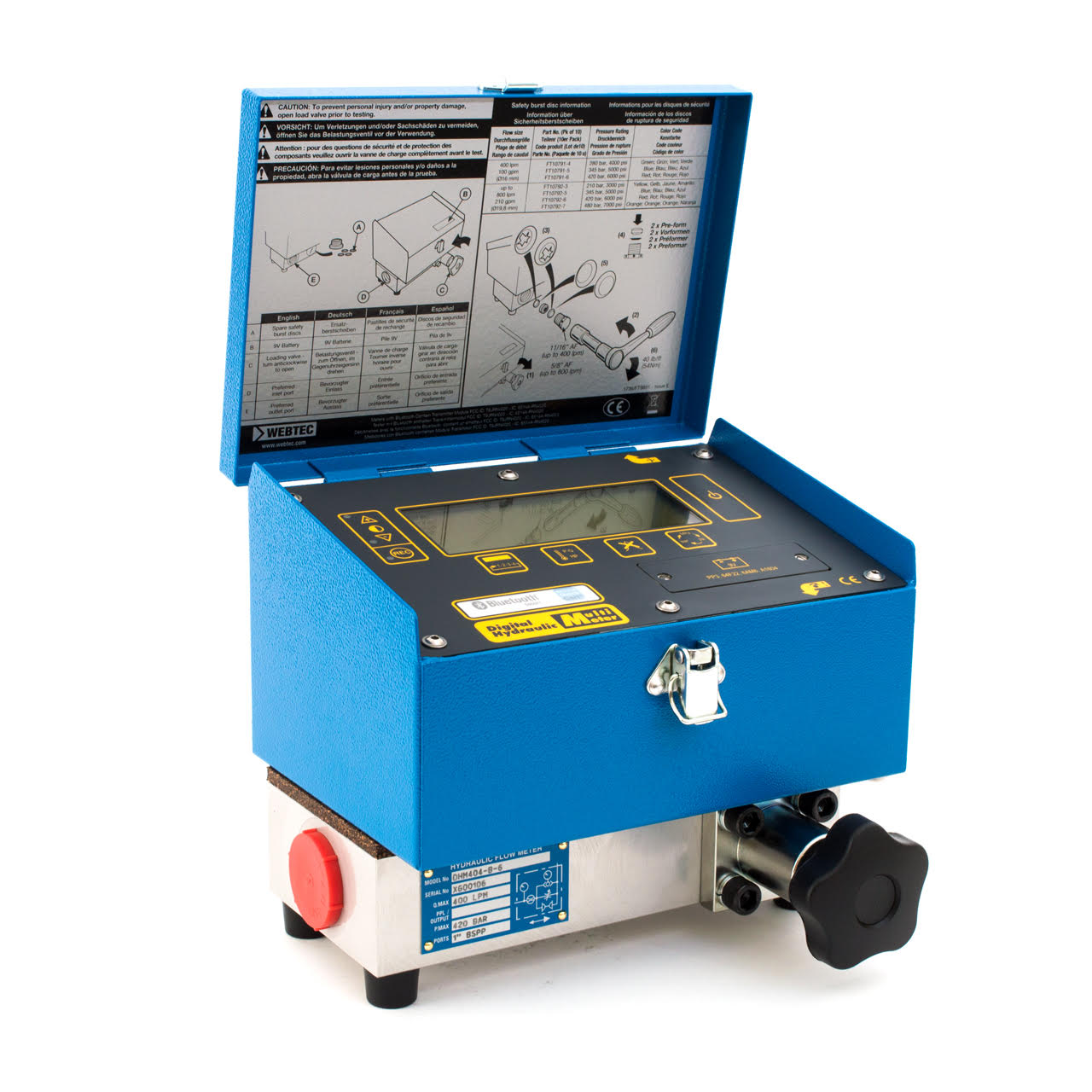

Webtec DHM804- S-7-L Digital Hydraulic Multimeter Unit.

Webtec DHM804- S-7-L Digital Hydraulic Multimeter Unit.

Low stock: 3 left

£3,914.00 GBP
£4,752.00 GBP £3,914.00 GBP
Sale Sold out

PRICE EXCL. VAT

  • Super Fast Worldwide Shipping Via Trusted Couriers
  • Make Significant Savings Against OEM Parts
  • Contact Our Expert Sales Team For Product Advice
  • Bulk Purchase Discount Available On All Products. Contact Our Sales Team To Discuss Your Requirements.

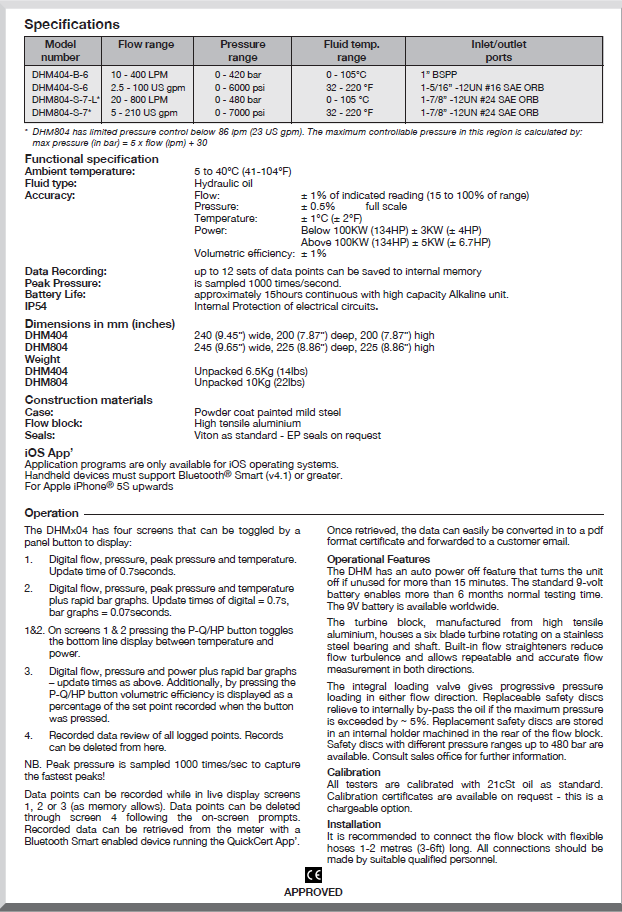

DHM804-S-7-L ( L version = Calibrated for UK litres per min other versions available please contact us)

Port Sizes 1 7/8” -12 UNF  Threaded Ports

DESCRIPTION

The new DHM series measures flow, pressure, peak pressure, temperature, power and volumetric efficiency. Features QuickCert™ data record, wireless transfer and certificate creation.

  • Produce an electronic report for immediate email to the customer
  • Flow: 210 US gpm (800 lpm)
  • Pressure: 7000 psi (480 bar)
  • Accurate measurements and FAST response bar graphs to aid diagnosis.
  • Automatic calculation of hydraulic power and volumetric efficiency.
  • Record data to robust, non-volatile memory.

Interpass™ internal oil by-pass protects the hydraulic tester against overpressure.
