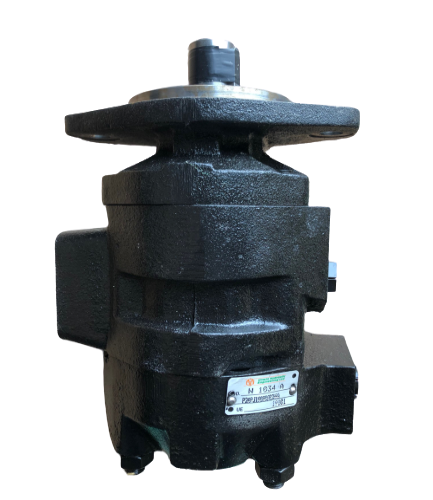

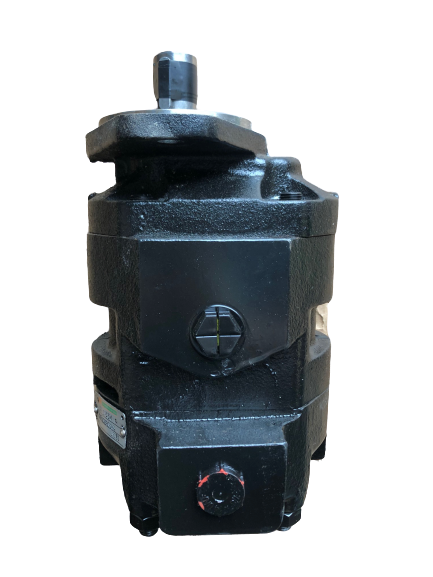

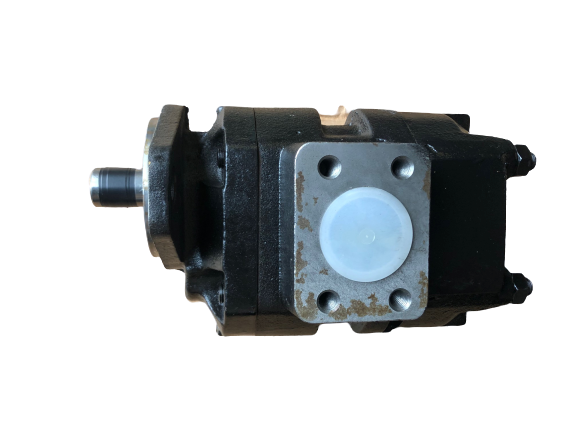

919/66700 JCB Twin Hydraulic Pump 919/66700 JCB Twin Hydraulic Pump

£1,091.20
£699.00
Availability: 2 In Stock
David Brown
Tags/ / / / / / / / / / /

*** Please see also 20/912800KIT ( Parker pump + Universal Joint kit ) ***
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1.125"” Diameter parallel keyed shaft (28.8mm)
  • SAE B 2 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 3/4" BSPP threaded
  • Rear pump outlet: 5/8" BSPP threaded
  • Maximum working pressure on front pump: 240 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

  • 919/66700 - 919/66800 - 919/66900
  • 919/71400 - 919/71500 - 919/71700

Machine Fitment

  • PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600
  • PUMP, MAIN HYDRAULIC 4CN 9802/9700
  • PUMP, MAIN HYDRAULIC 3CX 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 4C 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709
  • PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600
*** Please see also 20/912800KIT ( Parker pump + Universal Joint kit ) ***
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1.125"” Diameter parallel keyed shaft (28.8mm)
  • SAE B 2 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 3/4" BSPP threaded
  • Rear pump outlet: 5/8" BSPP threaded
  • Maximum working pressure on front pump: 240 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

  • 919/66700 - 919/66800 - 919/66900
  • 919/71400 - 919/71500 - 919/71700

Machine Fitment

  • PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600
  • PUMP, MAIN HYDRAULIC 4CN 9802/9700
  • PUMP, MAIN HYDRAULIC 3CX 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 4C 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709
  • PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
  • PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600
