Key Information
- Rotation: Clockwise (looking from shaft end)

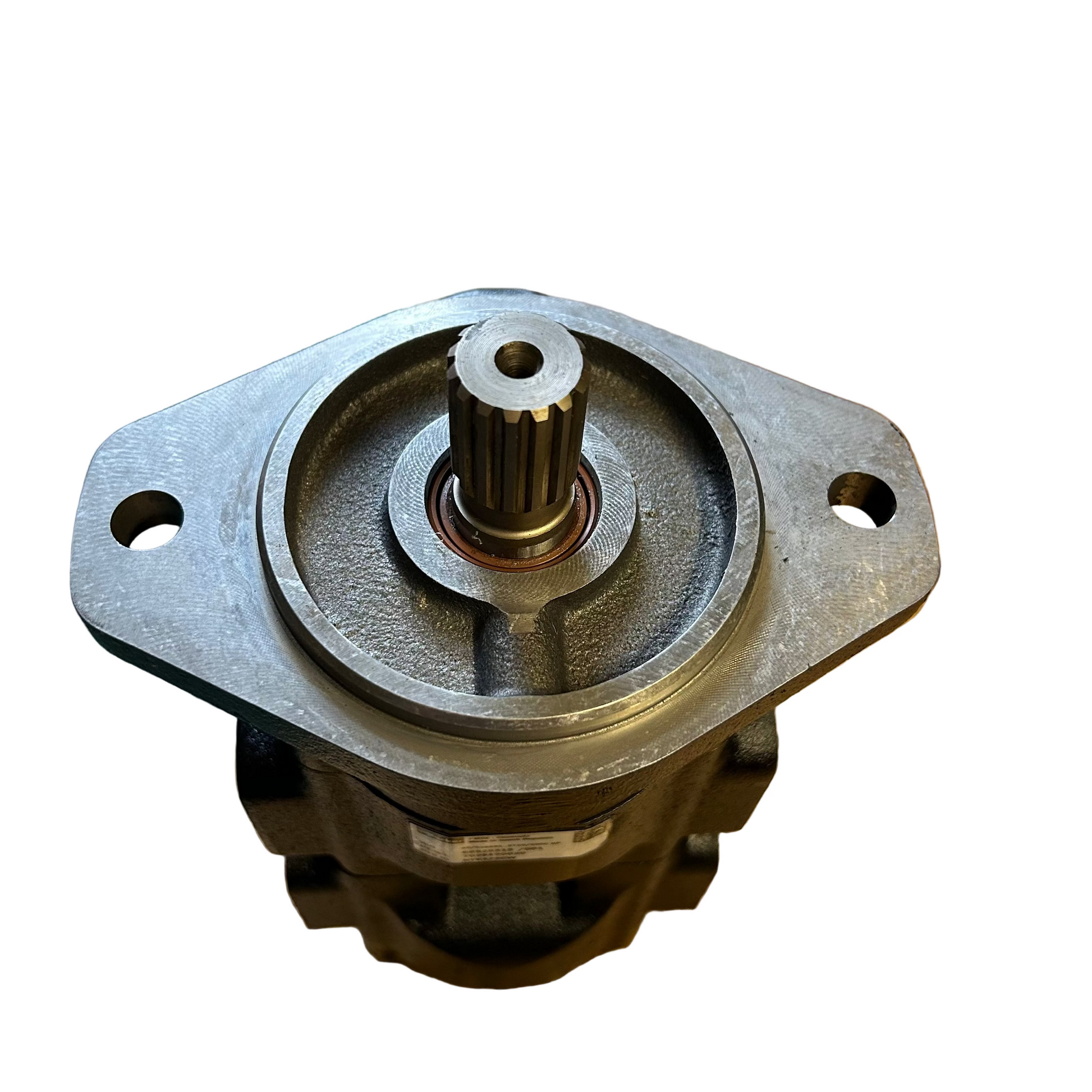

- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
- Rear pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 1 1/16”-12 UNF threaded
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
Weight
Machine Fitment
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Direct Control. AWS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Easycontrol. AWS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Direct Control. 2WS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Direct Control. AWS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Direct Control. 2WS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Easycontrol. AWS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Easycontrol. 2WS 9822/0650
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Easycontrol. 2WS 9822/0650
