333/G5390 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 29 CC/REV - Unwin Hydraulic Engineering

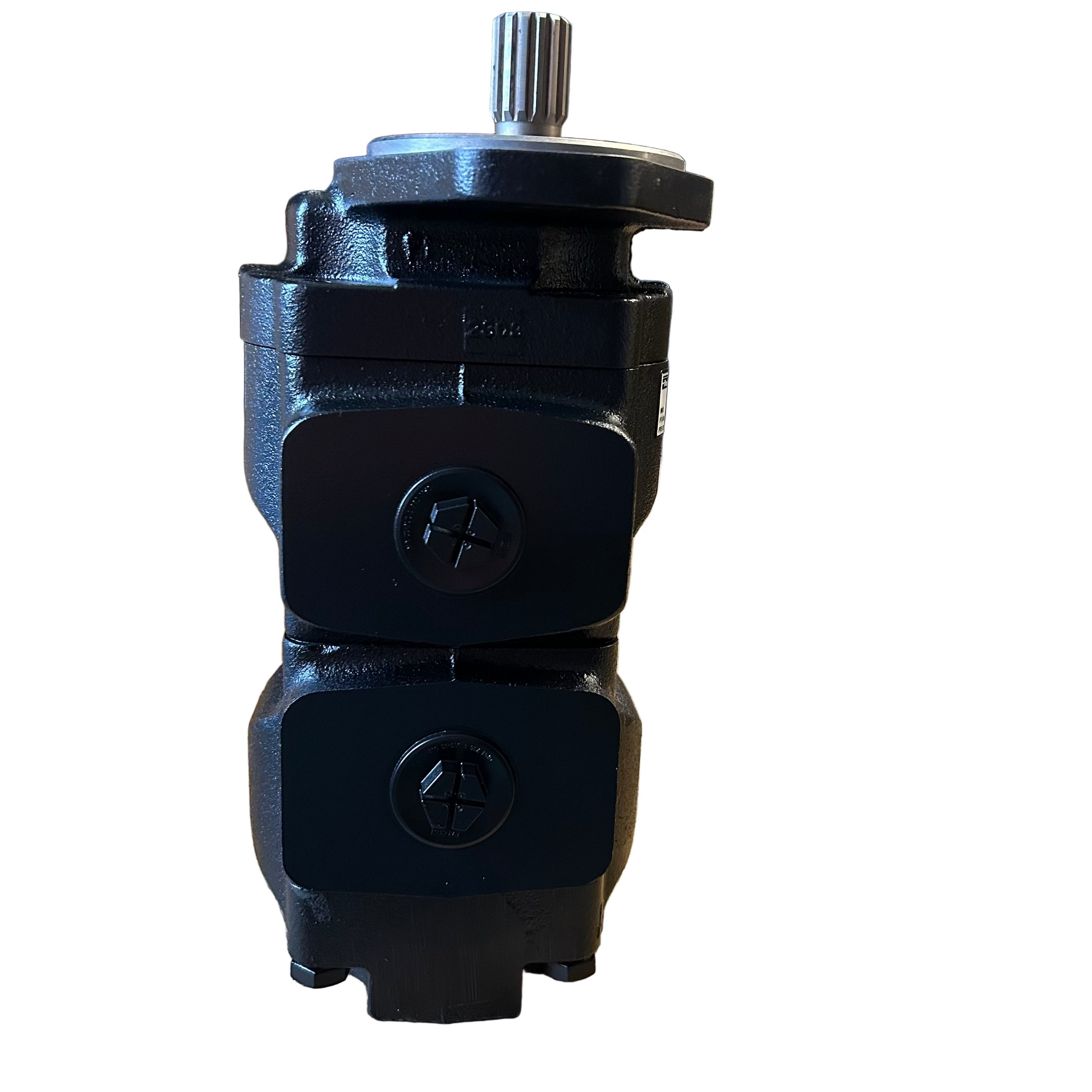

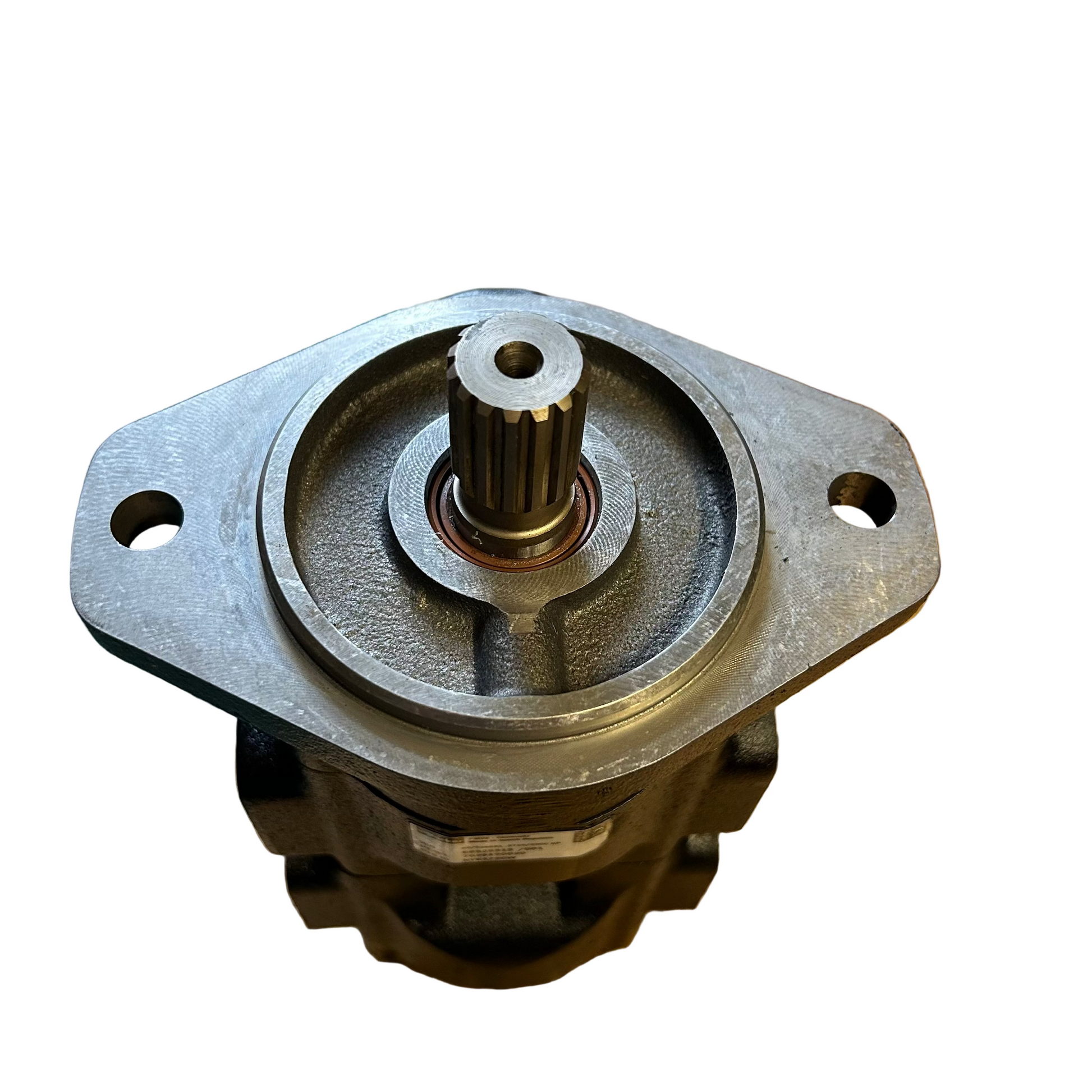

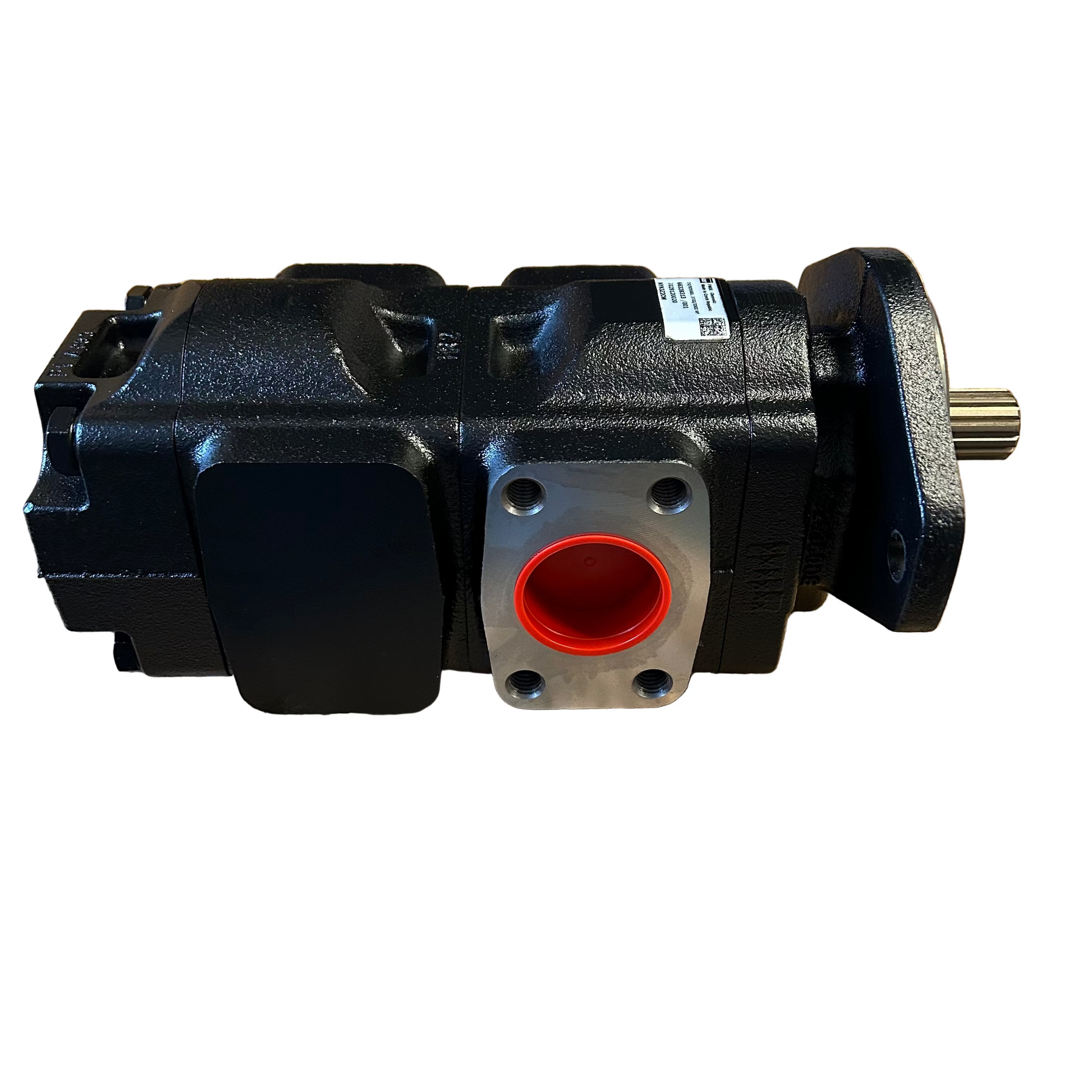

333/G5390 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 29 CC/REV

Parker Hannifin

  • £637.14
    Unit price per
  • Save £524.46
Tax included.


Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 1 1/16”-12 UNF threaded
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 333/G5390

Weight

  • 26KG

Machine Fitment

  • PUMP 36/2 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Easycontrol. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Direct Control. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Easycontrol. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Easycontrol. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Direct Control. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Direct Control. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Easycontrol. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Direct Control. 2WS 9822/0650
  • PUMPS GEAR 36/29ccr 3CXD14M2NM TIER 2 9822/0835
  • PUMPS GEAR 36/29ccr 3CXD14M3NM TIER 3 9822/0835
