Parker Hannifin

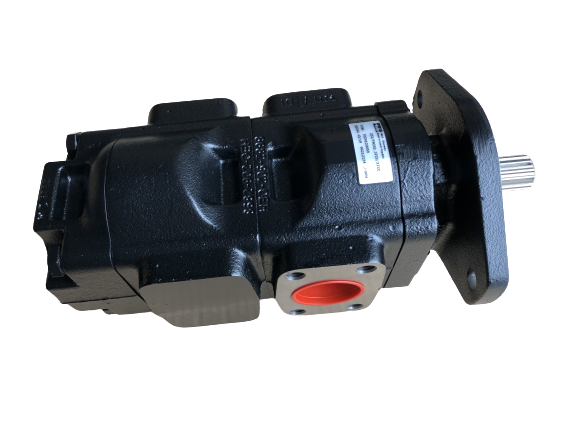

332/F9031 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 33 CC/REV

332/F9031 Genuine Parker / JCB 3CX Twin Hydraulic Pump 37 + 33 CC/REV

12 in stock

Regular price £796.00 GBP
Regular price £1,582.00 GBP Sale price £796.00 GBP
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 1 1/16”-12 UNF threaded
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 332/F9031

Weight

  • 26KG

Machine Fitment

  • PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
  • PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 4CX 9812/0010
  • PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM AUSTRIAN MILITARY 12 VOLT 9812/0110
  • PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010
  • PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010
  • PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX 9812/4160
  • PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX BSIII 9812/4160
  • PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX BSIII 9812/4160
  • PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX-JCB ENGINE BSII 9812/4160
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Direct Control. AWS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Direct Control. 2WS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Easycontrol. 2WS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Direct Control. 2WS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Direct Control. AWS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Easycontrol. 2WS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Easycontrol. AWS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Easycontrol. AWS 9822/0105
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Direct Control. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Easycontrol. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Direct Control. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Direct Control. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Direct Control. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Easycontrol. AWS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Centremount. Easycontrol. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 37/33CCR Sideshift. Easycontrol. 2WS 9822/0650
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 37/33 CCR 4DX SERVO 9822/0655
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 37/33 CCR 4DX SERVO 9822/1060
