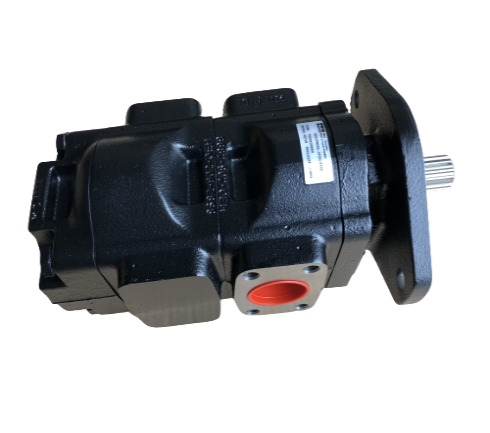

Key Information
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
- Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
- 20/925578 - 20/925586 - 332/F9028
Machine Fitment
- PUMP 33/23 CCR MAIN HYDRAULIC 82 HP BUILDS 3CX 84hp 9812/0010
- PUMP MAIN 33/23 CCR For Extra Dig Applications 3DX SUPER BSIII 9802/9850
- PUMP MAIN 33/23 CCR For Extra Dig Applications 3DX SUPER BSIII 9802/9850
- PUMP MAIN 33/23 CCR For Extra Dig Applications 3DX SUPER BSII INDIA HOME 9802/9850
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 33/23 CCR 3DX SUPER 9822/1015
- PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 33/23 CCR 3DX SUPER - SRILANKA 9822/1060
- PUMPS GEAR DETAILS 33/23CCR 3CXD14L4CM TIER 4 9822/0835
- PUMPS GEAR DETAILS 33/23CCR 3DX SUPER 9822/1015
- PUMPS GEAR DETAILS 33/23CCR 3CXG14L4CM 9822/0935
- PUMPS GEAR DETAILS 33/23CCR 3DX SUPER - SRILANKA 9822/1060
- PUMPS GEAR DETAILS 33/23CCR 3DX 9822/0525
- ENGINE TRANSMISSION Package 475/M1118 MISCELLANEOUS . 9802/1010
- PUMP MAIN HYDRAULIC 3DX XTRA BSII 9822/0110
- PUMP MAIN HYDRAULIC 3DX XTRA BSIII 9822/0110
- PUMP MAIN HYDRAULIC 3DX XTRA BSIII 9822/0110
