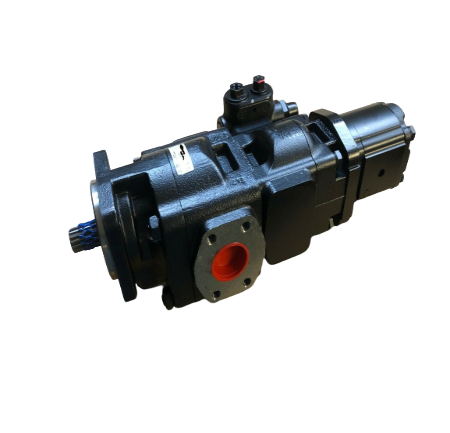

Key Information
- Rotation: Counter Clockwise (looking from shaft end)
- 1” Diameter 15T SAE B-B splined shaft
- SAE B 4 hole mounting flange
- Front Pump displacement: 40 cc/rev (40L/Min per 1000 rpm)
- Middle Pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
- Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
Replaces the following JCB part numbers
Weight
Machine Fitment
- PUMP,MAIN HYDRAULIC 540-170 Tier 2/3 9812/7600
- PUMP,MAIN HYDRAULIC 540-170 9812/7050
- PUMP,MAIN HYDRAULIC FITTINGS & MOUNTINGS 540-170 Tier 2/3 9812/7600
- PUMP,MAIN HYDRAULIC FITTINGS & MOUNTINGS 540-170 9812/7050
- PUMP/MOTOR INSTALLATION ASSEMBLIES 3 STAGE 540-170 9822/0310
- PUMP/MOTOR INSTALLATION ASSEMBLIES 3 STAGE 550-170 9822/0310
- PUMPS GEAR 3 STAGE PUMP , HYDRAULIC 540-170 9822/0310
- PUMPS GEAR 3 STAGE PUMP , HYDRAULIC 550-170 9822/0310
