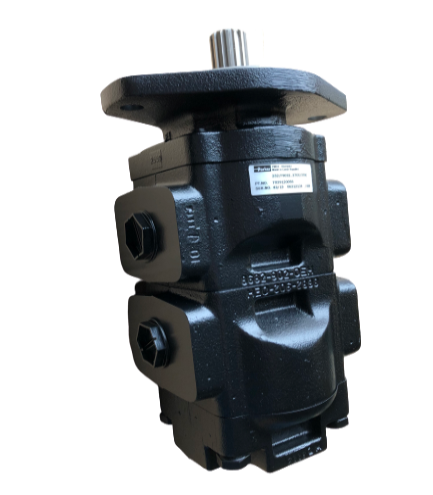

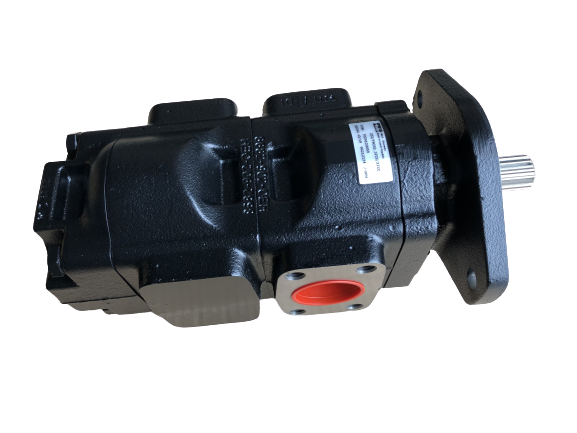

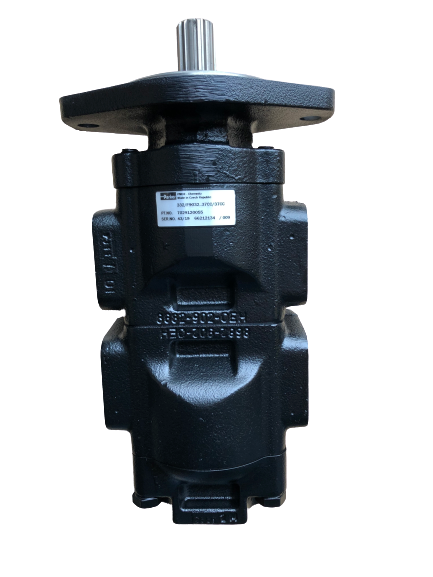

Key Information
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
- Rear pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 1 1/16”-12 UNF threaded
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
Weight
Machine Fitment
- PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
- PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 4CX 9812/0010
- PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 4CXM AUSTRIAN MILITARY 12 VOLT 9812/0110
- PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 3CX-T-PC Precision Control (Servo) 9812/0010
- PUMP 37/33 CCR MAIN HYDRAULIC 100 HP BUILDS 4CX-PC Precision Control (Servo) 9812/0010
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CN-4T PC Precision Control (Servo)- Sideshift 9802/9830
- PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX 9812/4160
- PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX BSIII 9812/4160
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CN Centremount 9802/9810
- PUMP, MAIN HYDRAULIC 37/33CCR 100HP BUILDS JAN05 4CXSM444 Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 37/33CCR 100HP BUILDS JAN05 4CX444 Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 37/33CCR 100HP BUILDS JAN05 4CXSM444 SUPER Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4C-4WS PC Precision Control (Servo)-Sideshift 9802/9830
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CXS4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CX444 Centremount 9802/9810
- PUMP, MAIN HYDRAULIC 37/33CCR 100HP BUILDS JAN05 3CX CONTRACTOR Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CXS-4WSPC Precision Control (Servo)- Sideshift 9802/9830
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 3CXSM444 SUPER Centremount 9802/9810
- PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX BSIII 9812/4160
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4C Centremount 9802/9810
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4C444 SUPER Centremount 9802/9810
- PUMP, MAIN HYDRAULIC 37/33CCR 100HP BUILDS JAN05 4CX444 SUPER Sideshift 9802/9800
- PUMP TRANSMISSION SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE 4DX-JCB ENGINE BSII 9812/4160
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CN-4WS PC Precision Control (Servo)- Sideshift 9802/9830
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4CN444 SUPER Centremount 9802/9810
- PUMP, MAIN HYDRAULIC 37/33CCR JAN05 4C-4T PC Precision Control (Servo)- Sideshift 9802/9830
