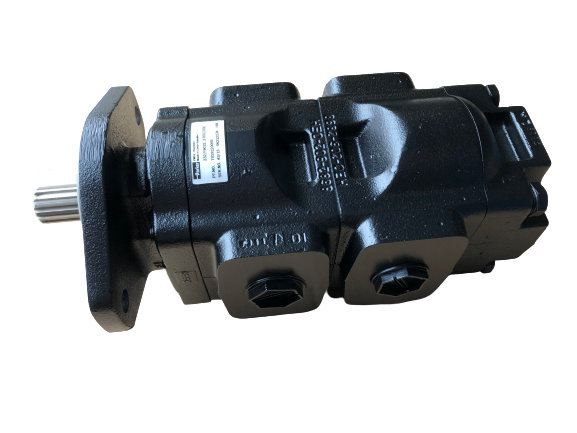

Key Information
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
- Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 250 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
- 20/925339 - 20/925579 - 332/F9029
Weight
Machine Fitment
- PUMP 36/26 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX MANUAL Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM P/S Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX P/S Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM MANUAL Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER P/S Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER MAN Sideshift 9802/9800
- PUMP 36/26 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010
