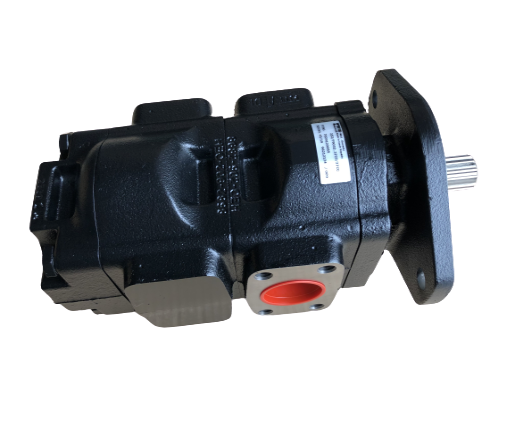

20/925366 Genuine Parker / JCB 214 Twin Hydraulic Pump 29 + 23 CC/REV

20/925366 Genuine Parker / JCB 214 Twin Hydraulic Pump 29 + 23 CC/REV

Parker Hannifin

  • £921.60
    Unit price per
  • Save £1,706.40
Tax included.


Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Weight

  • 26KG

Replaces the following JCB part numbers

  • 20/925366
