£1,679.00
£1,098.00
Availability: 6 In Stock

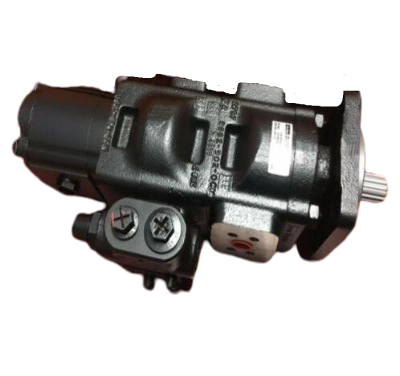

Parker Hannifin

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

  • 20/925356

Machine Fitment

  • PUMP MAIN HYDRAULIC 535-140 9802/7150
  • PUMP MAIN HYDRAULIC 540-140 9802/7130
  • PUMP MAIN HYDRAULIC 535-125 9802/7130
  • PUMP MAIN HYDRAULIC 532 9802/7120
  • PUMP MAIN HYDRAULIC 537 9802/7120
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535SX TELEAGRI 9802/7180
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535-60 FS PLUS 9802/7180
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535 FS SUPER 9802/7180
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535SXL TELEAGRI 9802/7180
  • PUMP MAIN HYDRAULIC M1004464 537LE 9802/7860
  • PUMP MAIN HYDRAULIC M1004464 532LE SWAY 9802/7860
  • PUMP MAIN HYDRAULIC M1004464 537LE SWAY 9802/7860
  • PUMP MAIN HYDRAULIC M1004464 532LE 9802/7860
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 540 FS PLUS 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530 9802/7040
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 540S X 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530S XL 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530S X 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530 SWAY 9802/7040
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 540 SUPER 9802/7020

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

  • 20/925356

Machine Fitment

  • PUMP MAIN HYDRAULIC 535-140 9802/7150
  • PUMP MAIN HYDRAULIC 540-140 9802/7130
  • PUMP MAIN HYDRAULIC 535-125 9802/7130
  • PUMP MAIN HYDRAULIC 532 9802/7120
  • PUMP MAIN HYDRAULIC 537 9802/7120
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535SX TELEAGRI 9802/7180
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535-60 FS PLUS 9802/7180
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535 FS SUPER 9802/7180
  • PUMP (THREE STAGE) MAIN HYDRAULICS 120HP,(110 L/MIN),FLOW-SHARE 535SXL TELEAGRI 9802/7180
  • PUMP MAIN HYDRAULIC M1004464 537LE 9802/7860
  • PUMP MAIN HYDRAULIC M1004464 532LE SWAY 9802/7860
  • PUMP MAIN HYDRAULIC M1004464 537LE SWAY 9802/7860
  • PUMP MAIN HYDRAULIC M1004464 532LE 9802/7860
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 540 FS PLUS 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530 9802/7040
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 540S X 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530S XL 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530S X 9802/7020
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 530 SWAY 9802/7040
  • PUMP,MAIN HYDRAULIC (FLOW SHARE) 540 SUPER 9802/7020
