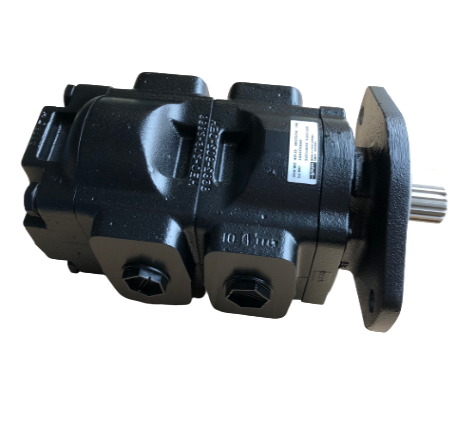

  • 20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV 20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV

20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV 20/925340 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 26 CC/REV

£1,112.00
£639.00
Availability: 20 In Stock
Parker Hannifin
Tags/ 3CX SUPER/ 3CX-4T PC/ 3CX4WSSMPC/ 3CXCSM4TPC/ 3CXSM/ 3CXSM-4/ 3CXSM444/ 4C-4WS/ 4CN/ 4CN444/ 4CX-4WS PC/ 4CX444/ 4CX4WSSMPC/ 4CXS-4WSPC/ 4CXSM/ 4CXSM444/ 4TPC/ JCB

FAST
SHIPPING

BEST
ONLINE PIRCES

ONLINE
TECHNICAL SUPPORT

FAST
SHIPPING

BEST
ONLINE PIRCES

ONLINE
TECHNICAL SUPPORT

  • Description Description
  • Shipping & Delivery Shipping & Delivery
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925340 - 7029120005

Machine Fitment

  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C-4WS PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CXSM444 Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CX444 SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CXSM444 SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXCSM4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CXS-4WSPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CX444 Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX444 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913  Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CN444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX CONTRACTOR Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CXS4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXC-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER MAN Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925340 - 7029120005

Machine Fitment

  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C-4WS PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CXSM444 Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CX444 SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CXSM444 SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXCSM4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CXS-4WSPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 4CX444 Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX444 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913  Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXSM-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CN444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4C444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX CONTRACTOR Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830 PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CXS4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CXC-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CX SUPER MAN Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR 92HP & 100HP BUILDS M0953913 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 41/26CCR M953913 4CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
