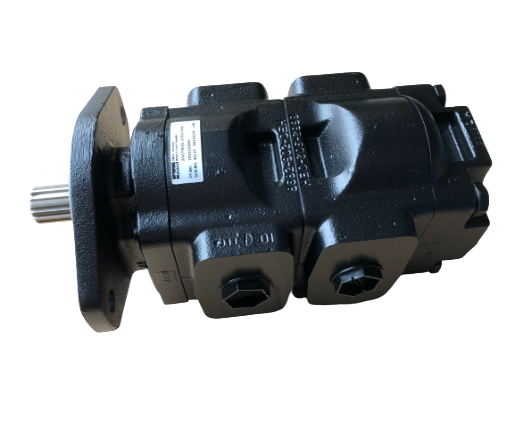

  • 20/925339 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV 20/925339 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

20/925339 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV 20/925339 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

£1,193.00
£609.00
Availability: 20 In Stock
Parker Hannifin
Tags/ 3CX/ 3CX SUPER/ 3CX SUPER MAN/ 3CX-4T/ 3CX-4WS/ 3CX-4WS PC/ 3CX4WSSMPC/ 3CXM-4/ 3CXSM/ 3CXSM444/ 4C/ JCB

FAST
SHIPPING

BEST
ONLINE PIRCES

ONLINE
TECHNICAL SUPPORT

FAST
SHIPPING

BEST
ONLINE PIRCES

ONLINE
TECHNICAL SUPPORT

  • Description Description
  • Shipping & Delivery Shipping & Delivery
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925339 - 20/925579 - 7029120006

Machine Fitment

  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX CONTRACTOR Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER MAN Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 4C Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925339 - 20/925579 - 7029120006

Machine Fitment

  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX CONTRACTOR Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER MAN Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 4C Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
We dispatch all of our items on the same day they are purchased, providing the purchase is made before 1pm and the item is in stock. We send our products worldwide via a wide range of couriers to provide you, the customer, with the best price and service.
We dispatch all of our items on the same day they are purchased, providing the purchase is made before 1pm and the item is in stock. We send our products worldwide via a wide range of couriers to provide you, the customer, with the best price and service.
