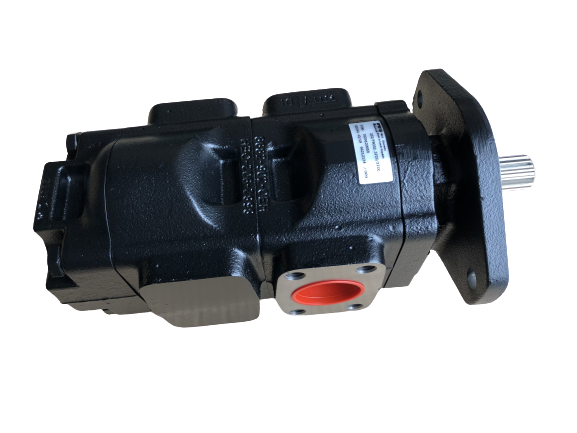

20/925338 Genuine Parker / JCB 3CX Twin Hydraulic Pump 33 + 23 CC/REV

Parker Hannifin

  • £715.20
    Unit price per
  • Save £352.80
Tax included.


Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925578 - 20/925586 - 332/F9028

Weight

  • 26KG

Machine Fitment

  • PUMP 33/23 CCR MAIN HYDRAULIC 82 HP BUILDS 3CX 84hp 9812/0010
  • PUMP, MAIN HYDRAULIC 33/23CCR M953892 3CX-2 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 33/23CCR M093893 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 33/23CCR M093893 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 33/23CCR M093893 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 33/23CCR M093893 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 33/23CCR M093893 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 33/23CCR M953892 3CX-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 33/23CCR M093893 3CX MANUAL Sideshift 9802/9800
  • PUMP MAIN HYDRAULIC 33:23 CU/REV 3CX-EXPORT 9812/4000
