£1,796.00
£1,279.00
Availability: 6 In Stock

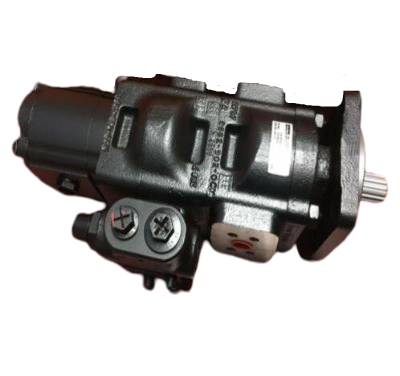

Parker Hannifin

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

  • 20/918300 - 8998S

Machine Fitment

  • MAIN HYDRAULIC M1004395 540 FS PLUS 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 530 SUPER AG 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 533-105 9802/7880
  • PUMP, MAIN HYDRAULIC M1004395 540S XL 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 530S XL 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 540 SUPER AG 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 535-95 9802/7880
  • PUMP, MAIN HYDRAULIC M1004395 530 FS PLUS 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 535-95 SWAY 9802/7880
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 SWAY 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 LE SWAY 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530S 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 LE 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 LE 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540S 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530 LE 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 540 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530S 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 540S 9802/7850

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

  • 20/918300 - 8998S

Machine Fitment

  • MAIN HYDRAULIC M1004395 540 FS PLUS 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 530 SUPER AG 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 533-105 9802/7880
  • PUMP, MAIN HYDRAULIC M1004395 540S XL 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 530S XL 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 540 SUPER AG 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 535-95 9802/7880
  • PUMP, MAIN HYDRAULIC M1004395 530 FS PLUS 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 535-95 SWAY 9802/7880
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 SWAY 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 LE SWAY 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530S 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 LE 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 LE 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540S 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530 LE 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 540 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530S 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 540S 9802/7850
