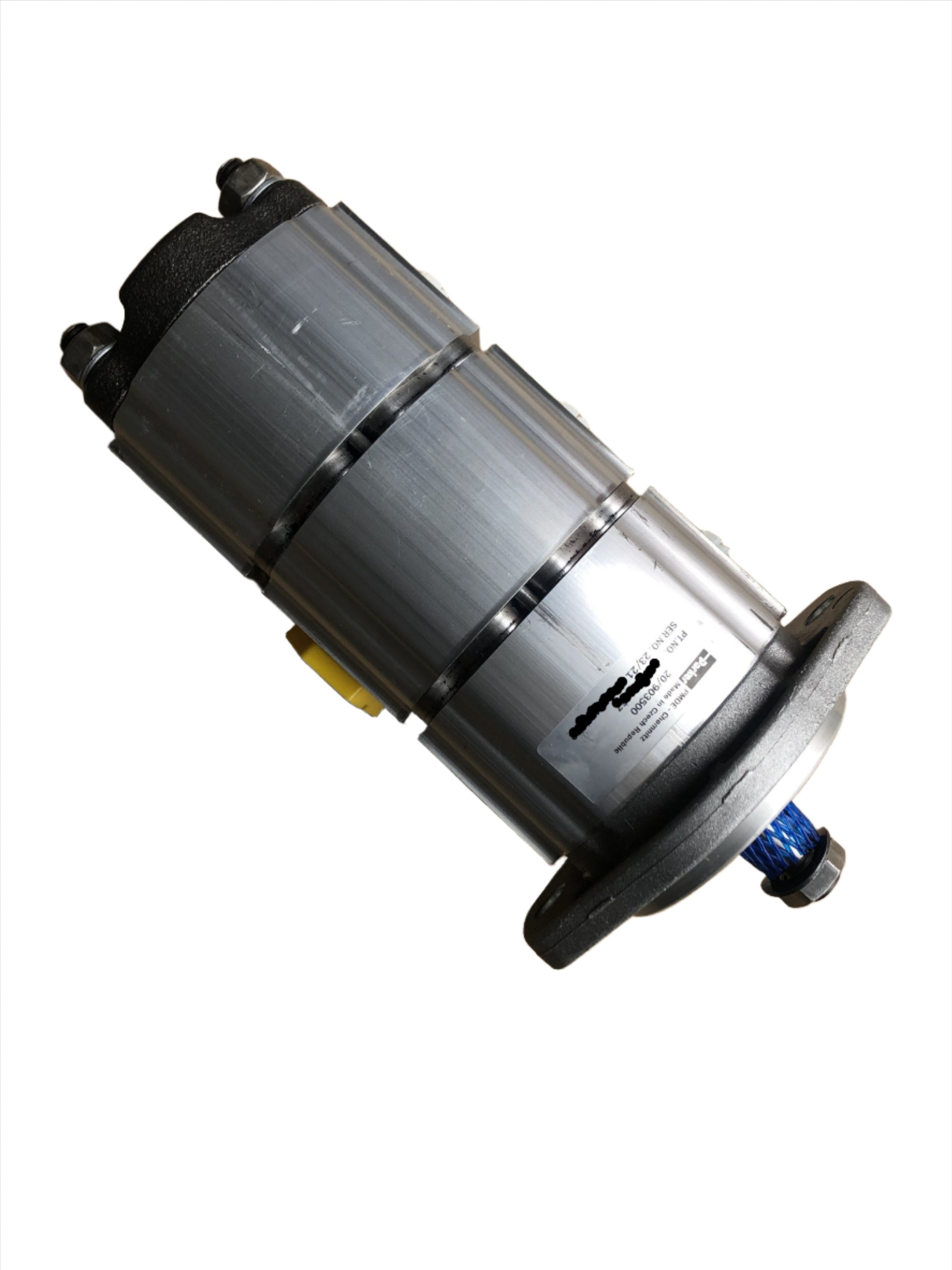

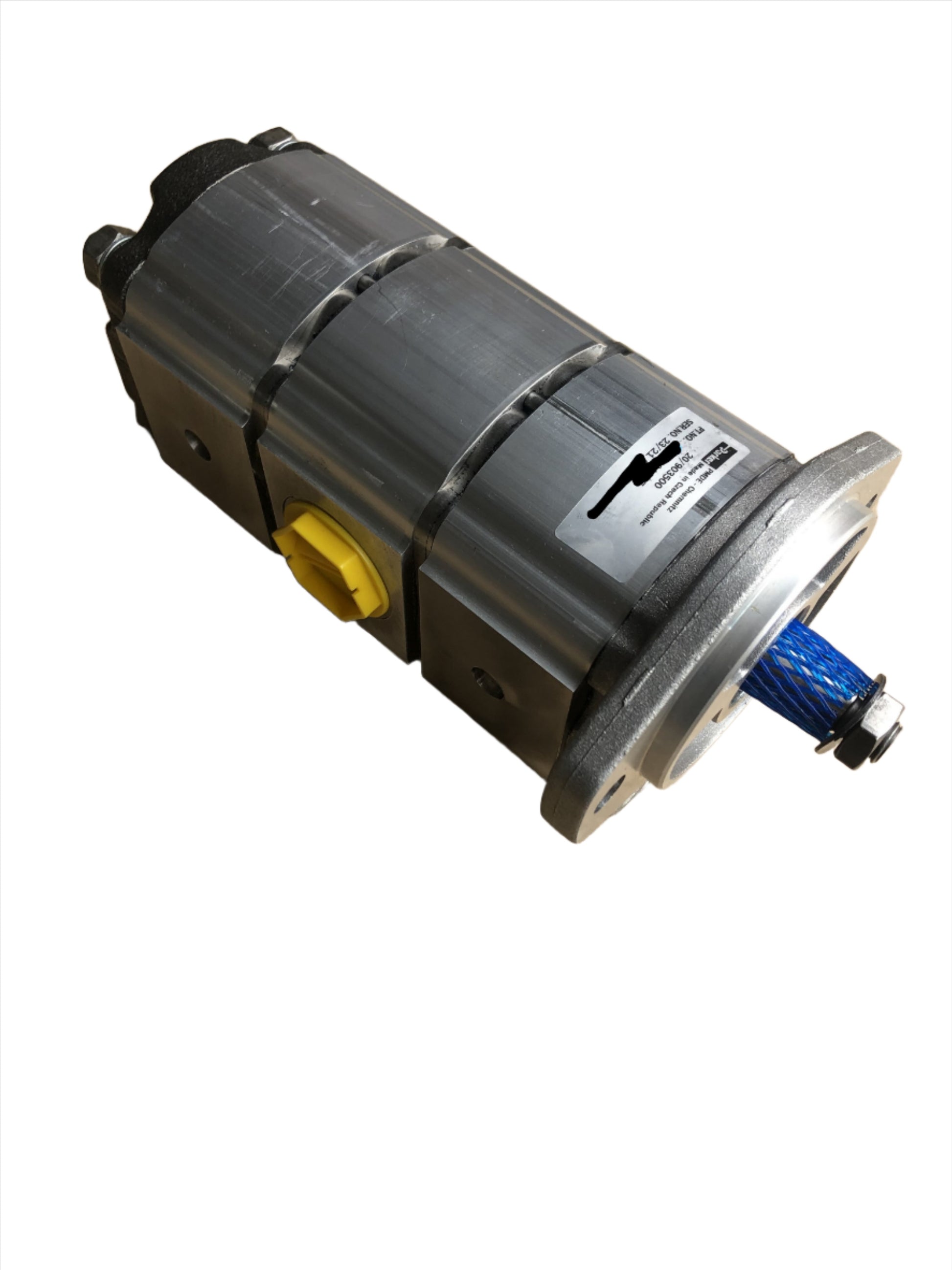

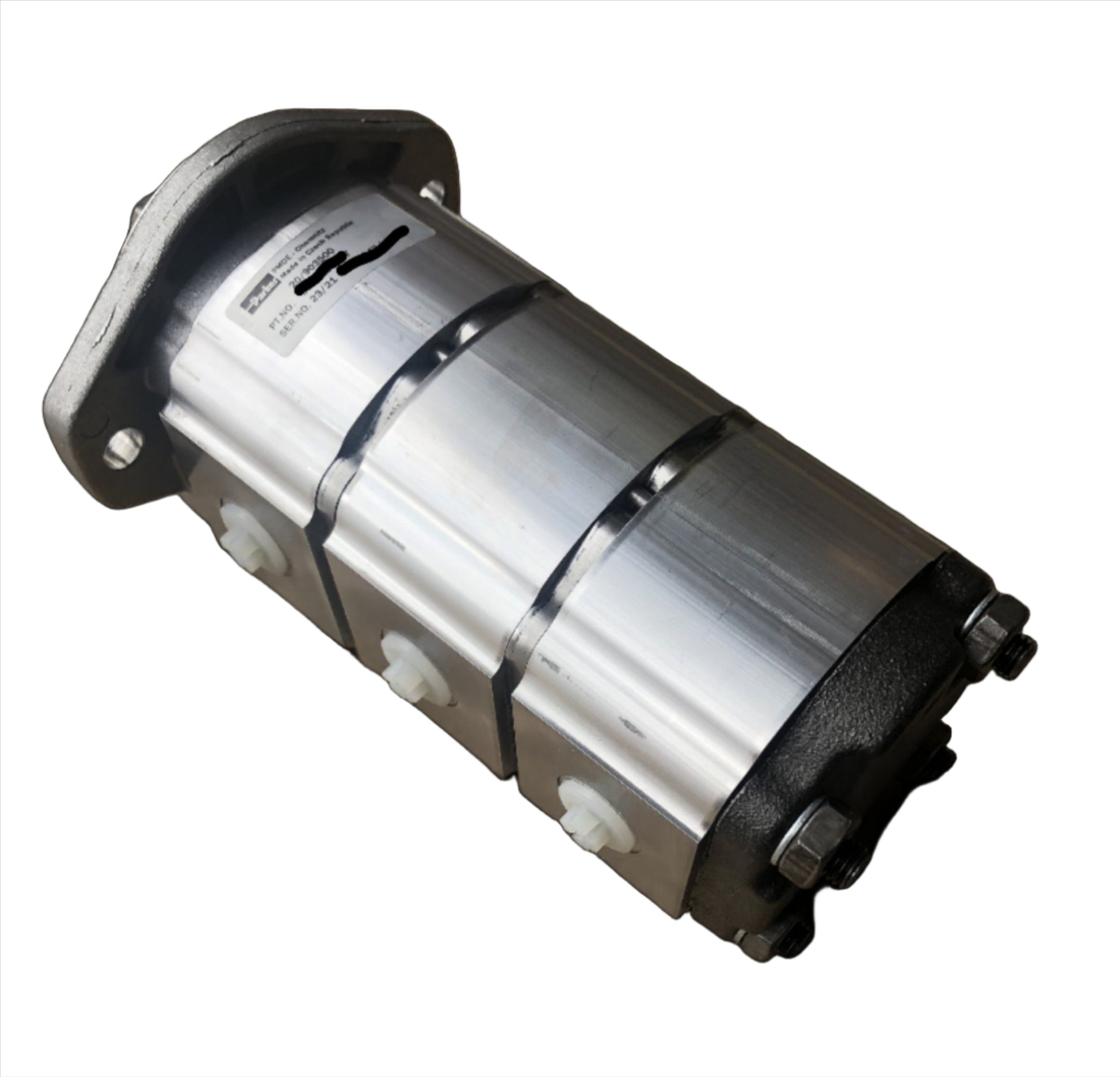

20/903500 Genuine Parker / JCB Triple Hydraulic Pump 4.5 + 6 + 6 CC/REV

Key Information

• Rotation: Clockwise (looking from shaft end
• Front Pump displacement: 4.5 cc/rev (4.5L/Min per 1000 rpm)
• Middle Pump displacement: 6 cc/rev (6L/Min per 1000 rpm)
• Rear Pump displacement: 6 cc/rev (6L/Min per 1000 rpm)

Replaces the following JCB part numbers

• 20/903500


Weight

• 8KG

Machine Fitment

• PUMP, MAIN HYDRAULIC M720001 801.4 9802/5403

• PUMP, MAIN HYDRAULIC 801.5 Pro Dig 9802/5403

• PUMP, MAIN HYDRAULIC 801.6N 9802/5403

• PUMP, MAIN HYDRAULIC 801.6 9802/5403

• PUMP, MAIN HYDRAULIC 801.5 9802/5403

• KIT, PUMP SINGLE INLET PUMPS 801 9802/5400
