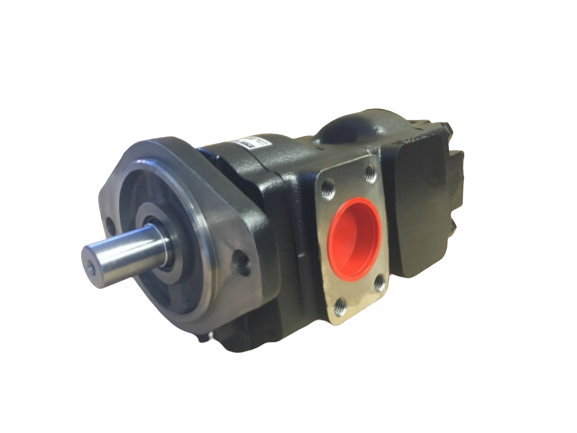

20/903000 Genuine Parker/JCB 3CX Twin Hydraulic Pump 29 + 29 CC/REV

• Rotation: Counter-Clockwise (looking from shaft end)
• 1” Diameter parallel keyed shaft
• SAE B 2 hole mounting flange
• Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
• Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
• Combined 2” SAE flange inlet
• Front pump outlet: 1 1/16”-12 UNF threaded
• Rear pump outlet: 7/8”-14 UNF threaded
• Maximum working pressure on front pump: 275 bar
• Maximum working pressure on rear pump: 275 bar
• Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

• 20/903000

Weight

• 26KG

Machine Fitment

• PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720

• PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730

• PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730

• PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730

• PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730

• PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600

• PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600

• PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600

• PUMP, MAIN HYDRAULIC 4CN 9802/9700

• PUMP, MAIN HYDRAULIC 3CX 9802/9700

• PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC 4C 9802/9700

• PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600

• PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709

• PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600

• PUMP, MAIN HYDRAULIC 3CXSM 9802/9700

• PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600
