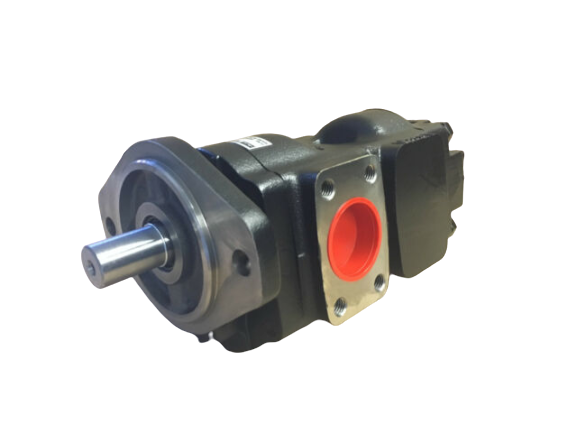

20/902900 Genuine Parker/JCB 3CX Twin Hydraulic Pump 33 + 29 CC/REV

Parker Hannifin

  • £714.00
    Unit price per
  • Save £620.40
Tax included.


Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter parallel keyed shaft
  • SAE B 2 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

  • 20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072

Weight

  • 26KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
  • PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC 3CX 9802/9700
  • PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600
  • PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
