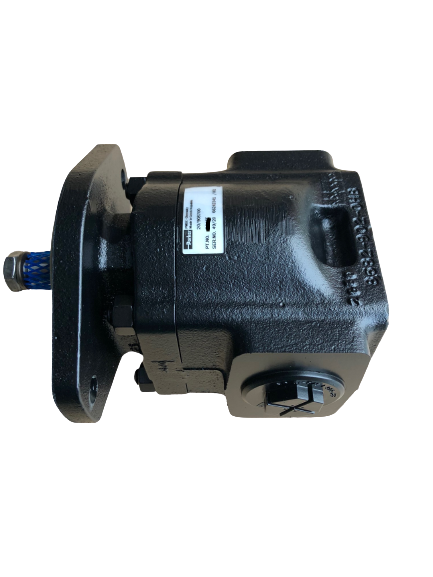

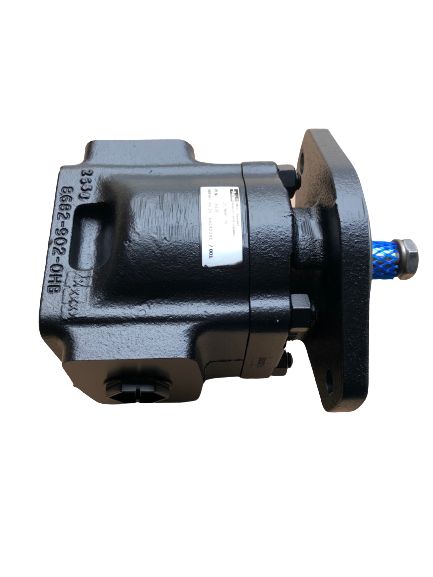

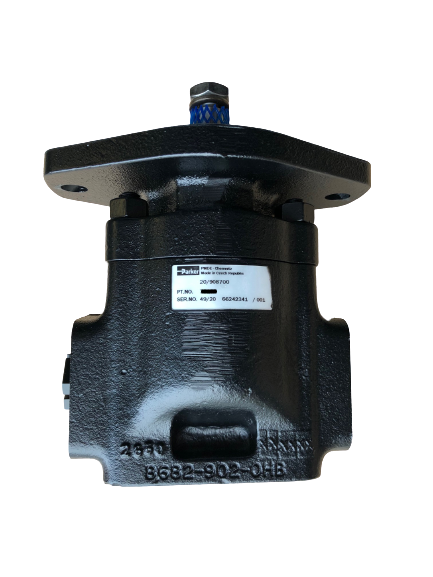

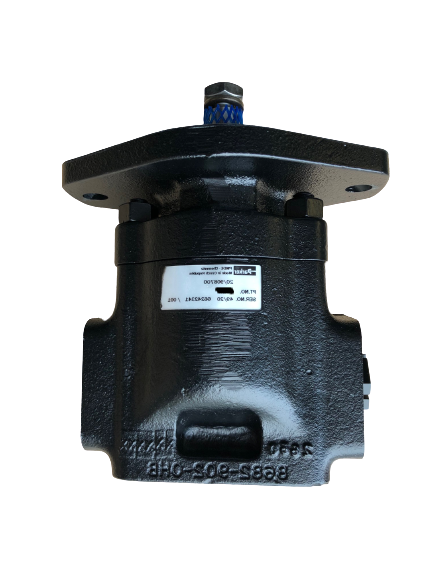

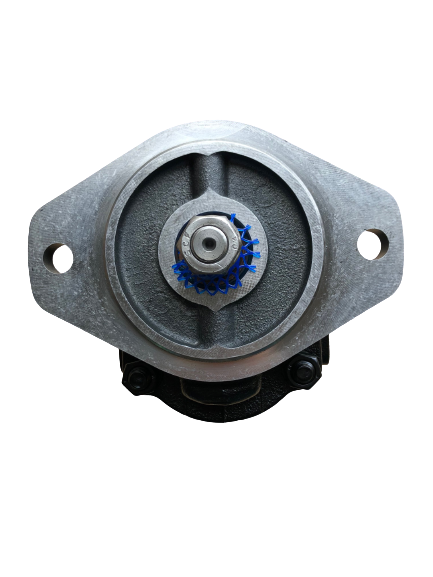

20/901100 Genuine Parker / JCB Hydraulic Pump 50 CC/REV

20/901100 Genuine Parker / JCB Hydraulic Pump 50 CC/REV

Key Information

• Rotation: Counter -Clockwise (looking from shaft end)
• Pump displacement: 50 cc/rev (50L/Min per 1000 rpm)

Replaces the following JCB part numbers

• 20/901100 7615F + ADDITIONAL ITEMS REQUIRED BELOW

Weight

• 13KG

Machine Fitment

• PUMP, MAIN HYDRAULIC 537-130 9802/7950 PUMP, MAIN HYDRAULIC 537-120 9802/7950
• PUMP, MAIN HYDRAULIC 530-120 9802/7800
• PUMP, MAIN HYDRAULIC 540-120 9802/7800
• PUMP, MAIN HYDRAULIC 530-120PLACEACE 9802/7800
• PUMP, MAIN HYDRAULIC 530-120S P'ACE 9802/7800
• PUMP, MAIN HYDRAULIC FITTINGS & MOUNTINGS 537-130 9802/7950
• PUMP, MAIN HYDRAULIC FITTINGS & MOUNTINGS 537-120 9802/7950
• PUMP, MAIN HYDRAULIC FITTINGS & MOUNTINGS M569293 530-120PLACEACE 9802/7800
• PUMP, MAIN HYDRAULIC FITTINGS & MOUNTINGS M569293 540-120 9802/7800
• PUMP, MAIN HYDRAULIC FITTINGS & MOUNTINGS M569293 530-120 9802/7800

Additional items required ( Hose and fittings etc.)

159/69955    Not included

1620/0010    Not included

20/908700     Included

615/30700    Not included

816/60249    Not included
